MEGASTRONG ROOFING SHEET



INTRODUCTION

Due to the fast growing demand for manufactured steel building products, MEGASTRONG has committed not only to be a trend setter in the market but also offering their high quality products to meet the current sophisticated customer's needs. MEGASTRONG; the innovative design and the combination of high strenght, light weight and easy to install procedure have made our roofing and wall cladding a must for buildings of contemporary designs.

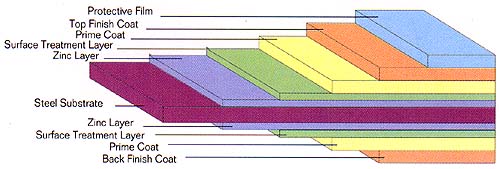

COLOUR STEEL COATING

MEGASTRONG is manufactured from galvanized steel to ASTM A446 and JIS-G3312 standard with Regular Polyster Paint finish to give a long lasting shine. Its TWO coat TWO bake system guarantees against peeling effect, weathering or chemical attack

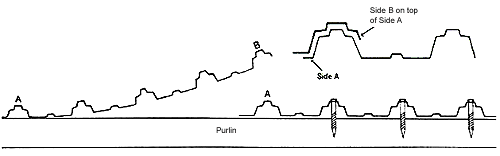

LAYING PROCEDURE OF MEGASTRONG

Overlapping of MEGASTRONG roofing sheets can be from left to right or right to left as long as the SIDE-B is on top of SIDE-A as shown in the following diagrams. NAILS and self-drill tap screws are used for fastening.

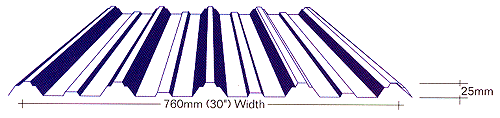

PROFILE DATA

Gauge
Total
coated
Thickness
Mass
Width of coverage
Depth of rib
Minimum
recommended
pitch
Max recommended spacing of supports
Max Roof
overhang
un-supported
roofs
walls



mm



Kg/m2



mm



mm



mm
Single Span

mm
End Span

mm
Inrternal Span

mm
Single Span

mm
End Span

mm
Inrternal Span

mm



mm
G24
0.50
5.00
760
25
3° (1 in 20)
800
900
1400
1400
1600
1850
150
G26
0.48
4.27
760
25
3° (1 in 20)
850
950
1370
1600
1800
2000
150
G28
0.38
3.47
760
25
3° (1 in 20)
550
650
920
1100
1300
1500
150
G32
0.30
3.29
760
25
3° (1 in 20)
500
450
520
600
800
1000
150



COLOURS AVAILABLE

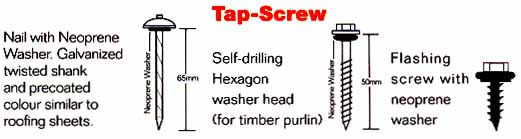

FASTENING

To ensure a secure roof, we recommend the use of self-drilling screws 45mm or 55mm length. Roofing nail of twisted shank with neo-prene washer can also be used. Roofing sheets are to be fasten through the upper crest, holes for the screws are to be pre-drilled. We would recommend the use of silicone sealant (non-acidic) to ensure water tightness at screw points.



ACCESSORIES


Ridge Capping 8' X 18"

Wall Flashing 8' X 18"

Valley Cutter 8' X 18"

Fascia Flashing 8' X 18"

Fascia Corner 8' X 18"

Barge Capping 8' X 18"



GENERAL ADVICE ON SAFETY

Always use soft shoe when walking on the roof and walk only on the bottom of profile over support battens. Make sure that all roofing sheets are secure before you walk on it. Never leave unsecured or unused sheets on the roof. If you require to store MEGASTRONG for a longer time before use, we recommend to store indoor in fry premises.
