EUROPA STEEL TILE SHEET

INNOVATIVE DESIGN UNCOMPROMISING QUALITY UNBEATABLE VALUE



INTRODUCTION

is a pratical decision for both new and renewal of roofing projects. It has the elegance of clay tile with durability and strength of steel. Its light weight and simple installation minimises the total cost of roofing projects.

With the latest European sheet metal technology using cad/cam system to design a unique profile with High Capacity Drainage Channel on every tilesheet to guarantee against water leakage especially suited to the heavy rainfall of our tropical climate.

is available in various colours and thickness.

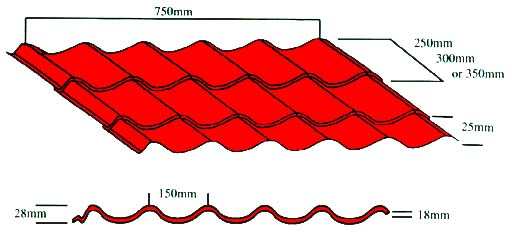

PROFILE DATA

Steel Sheet Thickness



Step Height

Modular Width

Profile Height

Effective Cover Width

Modular Length



Weight



Minimum pitch (Recommended)
Maximum Sheet Length (Recommended)

- G28 (0.39mm)
- G26 (0.45mm)
- G24 (0.50mm)

- 18mm

- 150mm

- 28mm

- 750mm

- 250mm (Fascia Board)
- 300mm (Standard Length)
- 350mm (On Request)

- 3.6kgs/m² (G28)
- 4.4kgs/m² (G26)
- 5.5kgs/m² (G24)

- 14 degree
- 30 feet (Limited only by transport)

Colours Available Pacific Blue
Brick Red
Dark Brown
Beige



COLOUR STEEL COATING

is manufactured from galvanized steel to JIS-G3312 standard with Regular Polyester Paint finish to give a long lasting shine. Its TWO coat TWO bake system guarantees against peeling effect, weathering or chemical attack.



INSTALLATION PROCEDURE

should be laid from RIGHT to LEFT (see Fig. 1). If more than one sheet length are needed, we would recommend to start with the LONGEST sheet and laid accordingly. Use the lowest support batten as straightening board. It is most important to lay the first sheet correctly. The preceding tilesheet should be lay with the RIGHT END of the second tilesheet overlapping the LEFT END of the first tilesheet covering the drainage channel. (see Fig. 2)



FASTENING

To ensure a secure roof, we recommend the use of self-drilling screws of 45mm or 55mm length. Roofing nail of twisted shank with neoprene washer can also be used. Tilesheets are to be screwed through the upper crest, holes for the screws are to be pre-drilled. We would recommend the use of silicone sealant (non-acidic) to ensure water tightness at screw points.

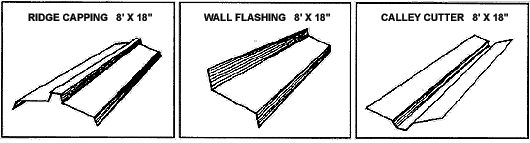

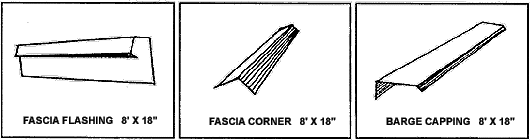

ACCESSORIES

* CUT TO SIZE ACCESSORIES ARE ALSO AVAILABLE ON REQUEST *



GENERAL ADVICE OF SAFETY

Always use soft shoe when walking on the roof and walk only on the bottom of the profile over support battens.

Make sure that all tilesheets are secure before you walk on it. Never leave unsecured or unused tilesheet on the roof.

If you require to store  for a longer time before use, we recommend to store indoor in dry premisses.
